About PLUS Solar PS-GM4 ZAM(Zn-AL-Mg) Galvanized Steel Ground Mounting System:
ZAM coating is a blend of zinc, aluminium (6%) and magnesium (3%) that provides far greater corrosion resistance than hot-dip galvanized coatings.
|
Brand |
PLUS Solar |
|
Item No. |
PS-GM4 |
|
Material |
Structure: Zn-AL-Mg galvanized Steel |
|
Placement |
Landscape or Portrait |
|
Foundation |
Ground Screw & Concrete Foundation |
|
Wind Load |
Up to 60m/s |
|
Snow Load |
Up to 1.6kN/m² |
|
Standard Compliance |
JIS 8955:2017 ASCE 7-05 BS Standard, etc. |
|
Warranty |
12 Years |
|
Lifetime |
25 Years |
|
Shipping Port |
Xiamen Port, China |
|
Lead Time |
7-15 Working Days After Receipt of Deposit |
Solution Details

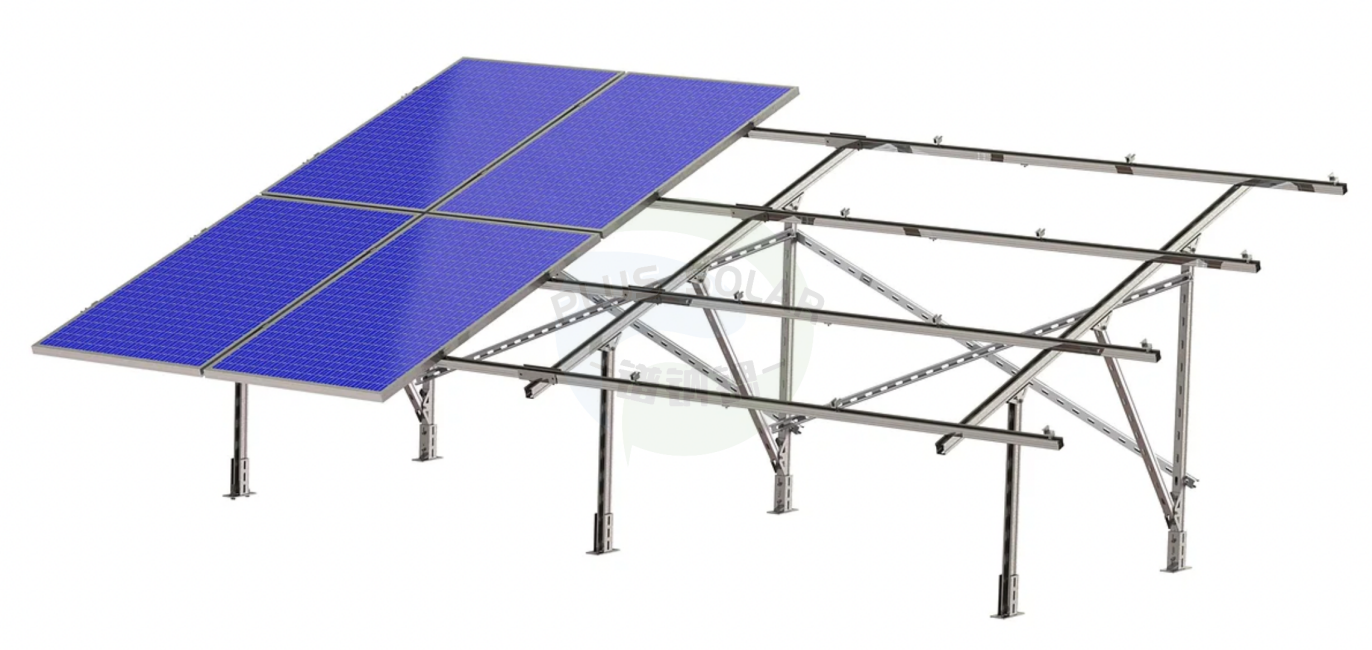

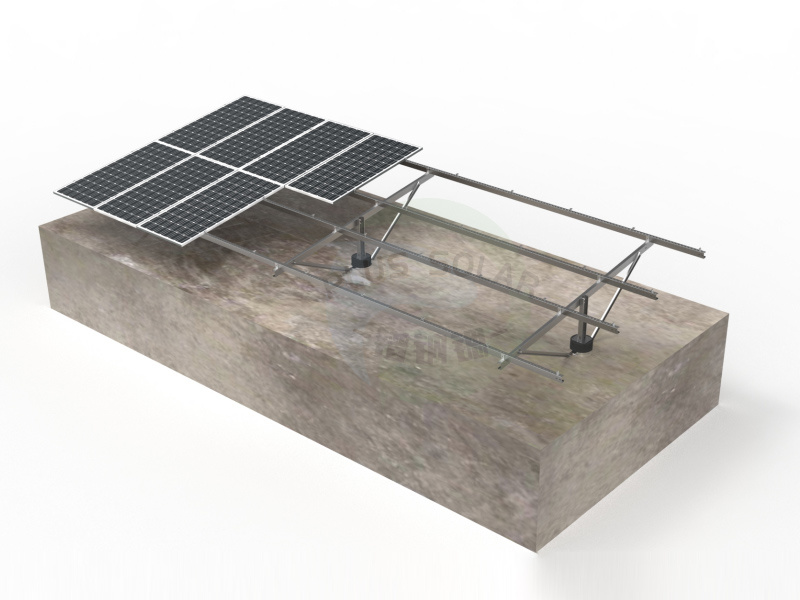

PLUS Solar Steel bracket is suitable for solar photovoltaic system bracket for large-scale ground projects. Customers can customize personalized solutions according to specific project information.
Two materials are available:
1. PS-GM3 is made of Q235 steel material, and the surface is hot-dip galvanized with strong corrosion resistance.
2. PS-GM4 magnesium aluminum zinc material has strong corrosion resistance and self-repair ability.
ZAM coated steel advantages:
+ New generation coating technology
+ Vastly improved corrosion resistance
+ Suitable for severe environments
+ Faster delivery than post-galvanized steel
+ Replaces need for higher coating weights
+ Raw edge protection
+ Concrete compatible
+ Scratch resistant
+ More economical than post-galvanized steel
+ No reduction in product performance
Spray Salt Test
Spray Salt Test for Zn-Al-Mg steel and Galvanized steel, the result shows anti-corrosion of Zn-Al-Mg steel is 4-5 times than that of galvanized ( 24hours SST is equivalently 1 year practical life in neutral environment)
Production Processing
About PLUS Solar own Factory for Aluminum Ground Mounting System:
PLUS Solar have a full line of processing equipment and strictly control every step in the processing: cutting - stamping - drilling - anodizing, and then choose the most appropriate packaging from your perspective.
What’s more, we’re very willing to customize products that meet your market conditions for you.
Video
Production Processing
About PLUS Solar own Factory for Aluminum Ground Mounting System:
PLUS Solar have a full line of processing equipment and strictly control every step in the processing: cutting - stamping - drilling - anodizing, and then choose the most appropriate packaging from your perspective.
What’s more, we’re very willing to customize products that meet your market conditions for you.
Video
Packing
